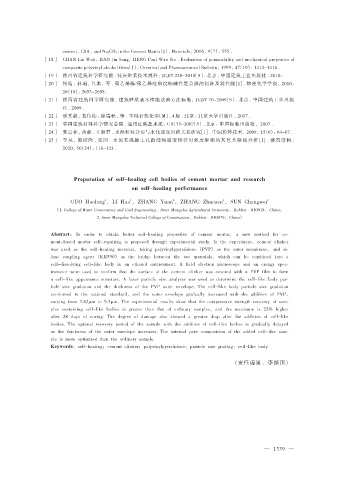

Page 81 - 水利学报2021年第52卷第11期

cement，CSA，and Na 2CO 3 in the Cement Matrix［J］. Materials，2016，9（7）：555 .
［ 18］ CHAN Lai Wah，HAO Jin Song，HENG Paul Wan Sia . Evaluation of permeability and mechanical properties of
composite polyvinyl alcohol films［J］. Chemical and Pharmaceutical Bulletin，1999，47（10）：1412-1416 .
［ 19］ 陕西省建筑科学研究院 . 抹灰砂浆技术规程：JGJ/T 220-2010［S］. 北京：中国建筑工业出版社 . 2010 .
［ 20］ 傅婧，林瑞，吕洪，等 . 聚乙烯醇/聚乙烯吡咯烷酮碱性复合膜的制备及其性能［J］. 物理化学学报，2010，
26（10）：2653-2658 .
［ 21］ 陕西省建筑科学研究院 . 建筑砂浆基本性能试验方法标准：JGJ/T 70-2009［S］. 北京：中国建筑工业出版
社 . 2009 .
［ 22］ 邢其毅，裴伟伟，徐瑞秋，等 . 基础有机化学［M］. 4 版 . 北京：北京大学出版社，2017 .
［ 23］ 中国建筑材料科学研究总院 . 通用硅酸盐水泥：GB175-2007［S］. 北京：中国标准出版社，2007 .
［ 24］ 朱宝林，黄新，王颖君 . 水泥粒径分布与水化速度间的关系研究［J］. 中国粉体技术，2009，15（6）：64-67 .
［ 25］ 李昊，郭皓隆，张园 . 水泥基混凝土孔隙结构演变特征对强度影响的灰色关联熵分析［J］. 建筑结构，
2020，50（24）：116-123 .

Preparation of self-healing cell bodies of cement mortar and research
on self-healing performance

1
1
1
2
GUO Haolong ，LI Hao ，ZHANG Yuan ，ZHANG Zhuosen ，SUN Changwei 1
（1. College of Water Conservancy and Civil Engineering，Inner Mongolia Agricultural University，Hohhot 010018，China；
2. Inner Mongolia Technical College of Construction，Hohhot 010070，China）
Abstract： In order to obtain better self-healing properties of cement mortar， a new method for ce⁃
ment-based mortar self-repairing is proposed through experimental study. In the experiment，cement clinker
was used as the self-healing material， taking polyvinylpyrrolidone （PVP） as the outer membrane， and si⁃
lane coupling agent （KH550） as the bridge between the two materials， which can be combined into a
self-dissolving cell-like body in an ethanol environment. A field electron microscope and an energy spec⁃
trometer were used to confirm that the surface of the cement clinker was covered with a PVP film to form
a cell-like appearance structure. A laser particle size analyzer was used to determine the cell-like body par⁃
ticle size gradation and the thickness of the PVP outer envelope. The cell-like body particle size gradation
conformed to the national standard， and the outer envelope gradually increased with the addition of PVP，
varying from 3.82μm to 9.3μm. The experimental results show that the compressive strength recovery of sam⁃
ples containing cell-like bodies is greater than that of ordinary samples， and the maximum is 22% higher
after 28 days of curing. The degree of damage also showed a greater drop after the addition of cell-like
bodies. The optimal recovery period of the sample with the addition of cell-like bodies is gradually delayed
as the thickness of the outer envelope increases. The internal pore composition of the added cell-like sam⁃
ple is more optimized than the ordinary sample.
Keywords：self-healing；cement clinker；polyvinylpyrrolidone；particle size grading；cell-like body
